TVS芯片

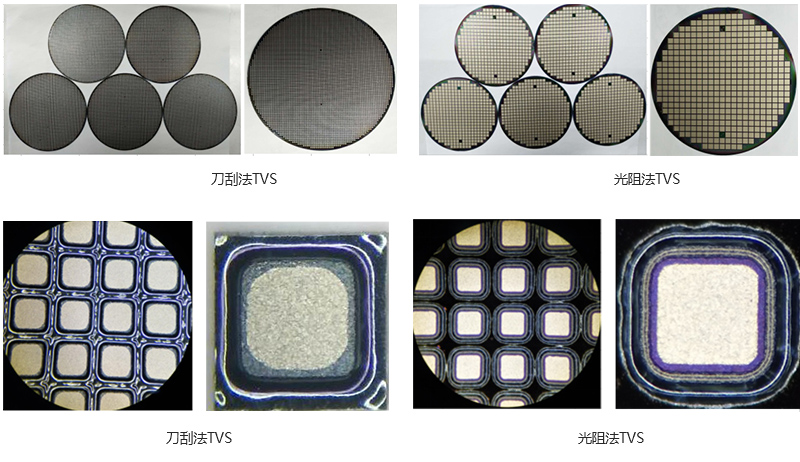

本公司提供200W、400W、600W、1500W、5000W之 6.8V至400V A/CA(單向及雙向)產品，并可客制尺寸及提供刀刮法及光阻法GPP兩種制程晶粒。
現今您可以將沖擊波的問題，交給本公司低電容突波吸收器，將限制瞬間過高的電壓"Transient Voltage Suppressors"(TVS)(瞬間電壓沖擊波抑制)，提高機器設備的使用年限和系統的可靠性，使您不再為閃電、打雷而擔心機器設備被破壞，
標準晶粒規格表
|
Chip size |
Package |
|
45 |
P2 |
|
60 |
P4KE, BZW04,SMAJ, P4SMA |
|
70 |
SMA, SMA5J, P4SMA |
|
80 |
P6KE, SMBJ,P6SMB |
|
90 |
SMB8J |
|
114 |
SMCJ |
|
125 |
1P5KE, 1P5SMC |
FEATURE
Low power loss
High surge capability
Glass passivated chip junction
Available in Unidirectional and Bidirectional
(For Bidirectional types, use A or CA suffix, e.g. P6KE400CA)
Ultra-fast recovery time for high efficiency
High temperature soldering guaranteed
600W電性表
|
MAXIMUM RATINGS(TA = 25 °C unless otherwise noted) |
|||
|
PARAMETER |
Symbol |
VALUE UNI |
units |
|
Peak power dissipation with a 10/1000 μs waveform |
PPPM |
600 |
W |
|
Peak pulse current with a 10/1000 μs waveform |
IPPM |
see next table |
A |
|
Power dissipation on infinite heatsink at TL = 75 °C |
PD |
5.0 |
W |
|
Peak forward surge current, 8.3 ms single half sine-wave unidirectional only |
IFSM |
100 |
A |
|
Maximum instantaneous forward voltage at 50A for unidirectional only |
VF |
3.5/5.0 |
V |
|
Typical thermal resistance junction-to-lead |
Rth(jl) |
20 |
℃/W |
|
Typical thermal resistance junction-to--ambient |
Rth(ja) |
75 |
℃/W |
|
Storage and Operating Junction Temperature |
Tstg,Tj |
-55 to +175 |
℃ |
|
DEVICE TYPE |
BREAKDOWN VOLTAGE V(BR) (V)@ IT(1) |
TEST CURRENT IT(mA) |
STAND-OFF VOLTAGE VWM (V) |
MAXIMUM REVERSE LEAKAGE ID(uA)@VWM |
PEAK PULSE CURRENT IPPM(A)(2) |
MAXIMUM CLAMPING VOLTAGE VC(V)@ IPPM |
|
|
MIN |
MAX |
||||||
|
P6KE6.8 |
6.12 |
7.48 |
10 |
5.50 |
1000 |
55.6 |
10.8 |
|
P6KE6.8A |
6.45 |
7.14 |
10 |
5.80 |
1000 |
57.1 |
10.5 |
|
P6KE7.5 |
6.75 |
8.25 |
10 |
6.05 |
500 |
51.3 |
11.7 |
|
P6KE7.5A |
7.13 |
7.88 |
10 |
6.40 |
500 |
53.1 |
11.3 |
|
P6KE8.2 |
7.38 |
9.02 |
10 |
6.63 |
200 |
48.0 |
12.5 |
|
P6KE8.2A |
7.79 |
8.61 |
10 |
7.02 |
200 |
49.6 |
12.1 |
|
P6KE9.1 |
8.19 |
10.0 |
1.0 |
7.37 |
50 |
43.5 |
13.8 |
|
P6KE9.1A |
8.65 |
9.55 |
1.0 |
7.78 |
50 |
44.8 |
13.4 |
|
P6KE10 |
9.00 |
11.0 |
1.0 |
8.10 |
10 |
40.0 |
15.0 |
|
P6KE10A |
9.50 |
10.5 |
1.0 |
8.55 |
10 |
41.4 |
14.5 |
|
P6KE11 |
9.90 |
12.1 |
1.0 |
8.92 |
5.0 |
37.0 |
16.2 |
|
P6KE11A |
10.5 |
11.6 |
1.0 |
9.40 |
5.0 |
38.5 |
15.6 |
|
P6KE12 |
10.8 |
13.2 |
1.0 |
9.72 |
5.0 |
34.7 |
17.3 |
|
P6KE12A |
11.4 |
12.6 |
1.0 |
10.2 |
5.0 |
35.9 |
16.7 |
|
P6KE13 |
11.7 |
14.3 |
1.0 |
10.5 |
5.0 |
31.6 |
19.0 |
|
P6KE13A |
12.4 |
13.7 |
1.0 |
11.1 |
5.0 |
33.0 |
18.2 |
|
P6KE15 |
13.5 |
16.5 |
1.0 |
12.1 |
1.0 |
27.3 |
22.0 |
|
P6KE15A |
14.3 |
15.8 |
1.0 |
12.8 |
1.0 |
28.3 |
21.2 |
|
P6KE16 |
14.4 |
17.6 |
1.0 |
12.9 |
1.0 |
25.5 |
23.5 |
|
P6KE16A |
15.2 |
16.8 |
1.0 |
13.6 |
1.0 |
26.7 |
22.5 |
|
P6KE18 |
16.2 |
19.8 |
1.0 |
14.5 |
1.0 |
22.6 |
26.5 |
|
P6KE18A |
17.1 |
18.9 |
1.0 |
15.3 |
1.0 |
23.8 |
25.2 |
|
P6KE20 |
18.0 |
22.0 |
1.0 |
16.2 |
1.0 |
20.6 |
29.1 |
|
P6KE20A |
19.0 |
21.0 |
1.0 |
17.1 |
1.0 |
21.7 |
27.7 |
|
P6KE22 |
19.8 |
24.2 |
1.0 |
17.8 |
1.0 |
18.8 |
31.9 |
|
P6KE22A |
20.9 |
23.1 |
1.0 |
18.8 |
1.0 |
19.6 |
30.6 |
|
P6KE24 |
21.6 |
26.4 |
1.0 |
19.4 |
1.0 |
17.3 |
34.7 |
|
P6KE24A |
22.8 |
25.2 |
1.0 |
20.5 |
1.0 |
18.1 |
33.2 |
|
P6KE27 |
24.3 |
29.7 |
1.0 |
21.8 |
1.0 |
15.3 |
39.1 |
|
P6KE27A |
25.7 |
28.4 |
1.0 |
23.1 |
1.0 |
16.0 |
37.5 |
|
P6KE30 |
27.0 |
33.0 |
1.0 |
24.3 |
1.0 |
13.8 |
43.5 |
|
P6KE30A |
28.5 |
31.5 |
1.0 |
25.6 |
1.0 |
14.5 |
41.4 |
|
P6KE33 |
29.7 |
36.3 |
1.0 |
26.8 |
1.0 |
12.6 |
47.7 |
|
P6KE33A |
31.4 |
34.7 |
1.0 |
28.2 |
1.0 |
13.1 |
45.7 |
|
P6KE36 |
32.4 |
39.6 |
1.0 |
29.1 |
1.0 |
11.5 |
52.0 |
|
P6KE36A |
34.2 |
37.8 |
1.0 |
30.8 |
1.0 |
12.0 |
49.9 |
|
P6KE39 |
35.1 |
42.9 |
1.0 |
31.6 |
1.0 |
10.6 |
56.4 |
|
P6KE39A |
37.1 |
41.0 |
1.0 |
33.3 |
1.0 |
11.1 |
53.9 |
|
P6KE43 |
38.7 |
47.3 |
1.0 |
34.8 |
1.0 |
9.7 |
61.9 |
|
P6KE43A |
40.9 |
45.2 |
1.0 |
36.8 |
1.0 |
10.1 |
59.3 |
|
P6KE47 |
42.3 |
51.7 |
1.0 |
38.1 |
1.0 |
8.8 |
67.8 |
|
P6KE47A |
44.7 |
49.4 |
1.0 |
40.2 |
1.0 |
9.3 |
64.8 |
|
P6KE51 |
45.9 |
56.1 |
1.0 |
41.3 |
1.0 |
8.2 |
73.5 |
|
P6KE51A |
48.5 |
53.6 |
1.0 |
43.6 |
1.0 |
8.6 |
70.1 |
|
P6KE56 |
50.4 |
61.6 |
1.0 |
45.4 |
1.0 |
7.5 |
80.5 |
|
P6KE56A |
53.2 |
58.8 |
1.0 |
47.8 |
1.0 |
7.8 |
77.0 |
|
P6KE62 |
55.8 |
68.2 |
1.0 |
50.2 |
1.0 |
6.7 |
89.0 |
|
P6KE62A |
58.9 |
65.1 |
1.0 |
53.0 |
1.0 |
7.1 |
85.0 |
|
DEVICE TYPE |
BREAKDOWN VOLTAGE V(BR) (V) @ IT(1) |
TEST CURRENT IT(mA) |
STAND-OFF VOLTAGE VWM (V) |
MAXIMUM REVERSE LEAKAGE ID(uA) @VWM(3) |
PEAK PULSE CURRENT IPPM(A)(2) |
MAXIMUM CLAMPING VOLTAGE VC(V) @ IPPM |
|
|
MIN |
MAX |
||||||
|
P6KE68 |
61.2 |
74.8 |
1.0 |
55.1 |
1.0 |
6.1 |
98.0 |
|
P6KE68A |
64.6 |
71.4 |
1.0 |
58.1 |
1.0 |
6.5 |
92.0 |
|
P6KE82 |
73.8 |
90.2 |
1.0 |
66.4 |
1.0 |
5.1 |
118 |
|
P6KE82A |
77.9 |
86.1 |
1.0 |
70.1 |
1.0 |
5.3 |
113 |
|
P6KE91 |
81.9 |
100 |
1.0 |
73.7 |
1.0 |
4.6 |
131 |
|
P6KE91A |
86.5 |
95.5 |
1.0 |
77.8 |
1.0 |
4.8 |
125 |
|
P6KE100 |
90.0 |
110 |
1.0 |
81.0 |
1.0 |
4.2 |
144 |
|
P6KE100A |
95.0 |
105 |
1.0 |
85.5 |
1.0 |
4.4 |
137 |
|
P6KE110 |
99.0 |
121 |
1.0 |
89.2 |
1.0 |
3.8 |
158 |
|
P6KE110A |
105 |
116 |
1.0 |
94.0 |
1.0 |
3.9 |
152 |
|
P6KE120 |
108 |
132 |
1.0 |
97.2 |
1.0 |
3.5 |
173 |
|
P6KE120A |
114 |
126 |
1.0 |
102 |
1.0 |
3.6 |
165 |
|
P6KE130 |
117 |
143 |
1.0 |
105 |
1.0 |
3.2 |
187 |
|
P6KE130A |
124 |
137 |
1.0 |
111 |
1.0 |
3.4 |
179 |
|
P6KE140 |
126 |
154 |
1.0 |
112 |
1.0 |
3.0 |
200 |
|
P6KE140A |
133 |
147 |
1.0 |
119 |
1.0 |
3.1 |
192 |
|
P6KE150 |
135 |
165 |
1.0 |
121 |
1.0 |
2.8 |
215 |
|
P6KE150A |
143 |
158 |
1.0 |
128 |
1.0 |
2.9 |
207 |
|
P6KE160 |
144 |
176 |
1.0 |
130 |
1.0 |
2.6 |
230 |
|
P6KE160A |
152 |
168 |
1.0 |
136 |
1.0 |
2.7 |
219 |
|
P6KE170 |
153 |
187 |
1.0 |
138 |
1.0 |
2.5 |
244 |
|
P6KE170A |
162 |
179 |
1.0 |
145 |
1.0 |
2.6 |
234 |
|
P6KE180 |
162 |
198 |
1.0 |
146 |
1.0 |
2.3 |
258 |
|
P6KE180A |
171 |
189 |
1.0 |
154 |
1.0 |
2.4 |
246 |
|
P6KE200 |
180 |
220 |
1.0 |
162 |
1.0 |
2.1 |
287 |
|
P6KE200A |
190 |
210 |
1.0 |
171 |
1.0 |
2.2 |
274 |
|
P6KE220 |
198 |
242 |
1.0 |
175 |
1.0 |
1.7 |
344 |
|
P6KE220A |
209 |
231 |
1.0 |
185 |
1.0 |
1.8 |
328 |
|
P6KE250 |
225 |
275 |
1.0 |
202 |
1.0 |
1.7 |
360 |
|
P6KE250A |
237 |
263 |
1.0 |
214 |
1.0 |
1.7 |
344 |
|
P6KE300 |
270 |
330 |
1.0 |
243 |
1.0 |
1.4 |
430 |
|
P6KE300A |
285 |
315 |
1.0 |
256 |
1.0 |
1.4 |
414 |
|
P6KE350 |
315 |
385 |
1.0 |
284 |
1.0 |
1.2 |
504 |
|
P6KE350A |
333 |
368 |
1.0 |
300 |
1.0 |
1.2 |
482 |
|
P6KE400 |
360 |
440 |
1.0 |
324 |
1.0 |
1.0 |
574 |
|
P6KE400A |
380 |
420 |
1.0 |
342 |
1.0 |
1.1 |
548 |
|
P6KE440 |
396 |
484 |
1.0 |
356 |
1.0 |
0.95 |
631 |
|
P6KE440A1 |
442 |
462 |
1.0 |
376 |
1.0 |
1.0 |
602 |
|
P6KE440A |
418 |
462 |
1.0 |
376 |
1.0 |
1.0 |
602 |
|
P6KE480 |
432 |
528 |
1.0 |
389 |
1.0 |
0.88 |
686 |
|
P6KE480A |
456 |
504 |
1.0 |
408 |
1.0 |
0.91 |
658 |
|
P6KE510 |
459 |
561 |
1.0 |
413 |
1.0 |
0.82 |
729 |
|
P6KE510A |
485 |
535 |
1.0 |
434 |
1.0 |
0.86 |
698 |
|
P6KE540 |
486 |
594 |
1.0 |
437 |
1.0 |
0.78 |
772 |
|
P6KE540A |
513 |
567 |
1.0 |
459 |
1.0 |
0.81 |
740 |
